Cold rooms

Cold Room Panels

We manufacture insulated panelling for a wide range of industries. Due to all processes being manufactured in house we are able to make specialised products and the versatile strength of our polyurethane panels can fulfil most needs for cold & freezer rooms of any size.

Specifications

Cold room panels are manufactured by injecting a two part polyurethane substrate between two cladding layers in a heated moulding system. Thermal properties are 25-30% superior to polystyrene and at least 70% better than any typical mineral wool material. Long term thermal resistance is achieved between -30°C and 90°C, temperatures of up to 250°C can be withstood for a short period without damage. Closed cell foam is packed at density 38-40kg/m3 and has fire retardant properties. Due to the closed cell nature of the polyurethane moisture is not absorbed and is resistant to insects and rodents. Standard finish is white Chromadek but we also stock black Chromadek and stainless steel for specialised chemical and food safe requirements. Cold room panels are supplied with a protective plastic on each side to avoid scratching in transit and during installation. Chromadek has a rigidised / ribbed finish as standard but can also be manufactured in smooth / plain on request. Wall system is tongue and groove in concept providing a weathertight seal between panels along with no cold bridging between skins. Panels have a lateral coverage of 1179mm per panel. Standard panel thickness is 42, 50, 75, 100, 125 and 150mm. We are also capable of manufacturing polyurethane foam slabs with a tongue and groove join, perfect for insulating floors prior to throwing a final cement screed. If concrete is in situ we can provide standard panels which would require an Aluminium checker plate finish.

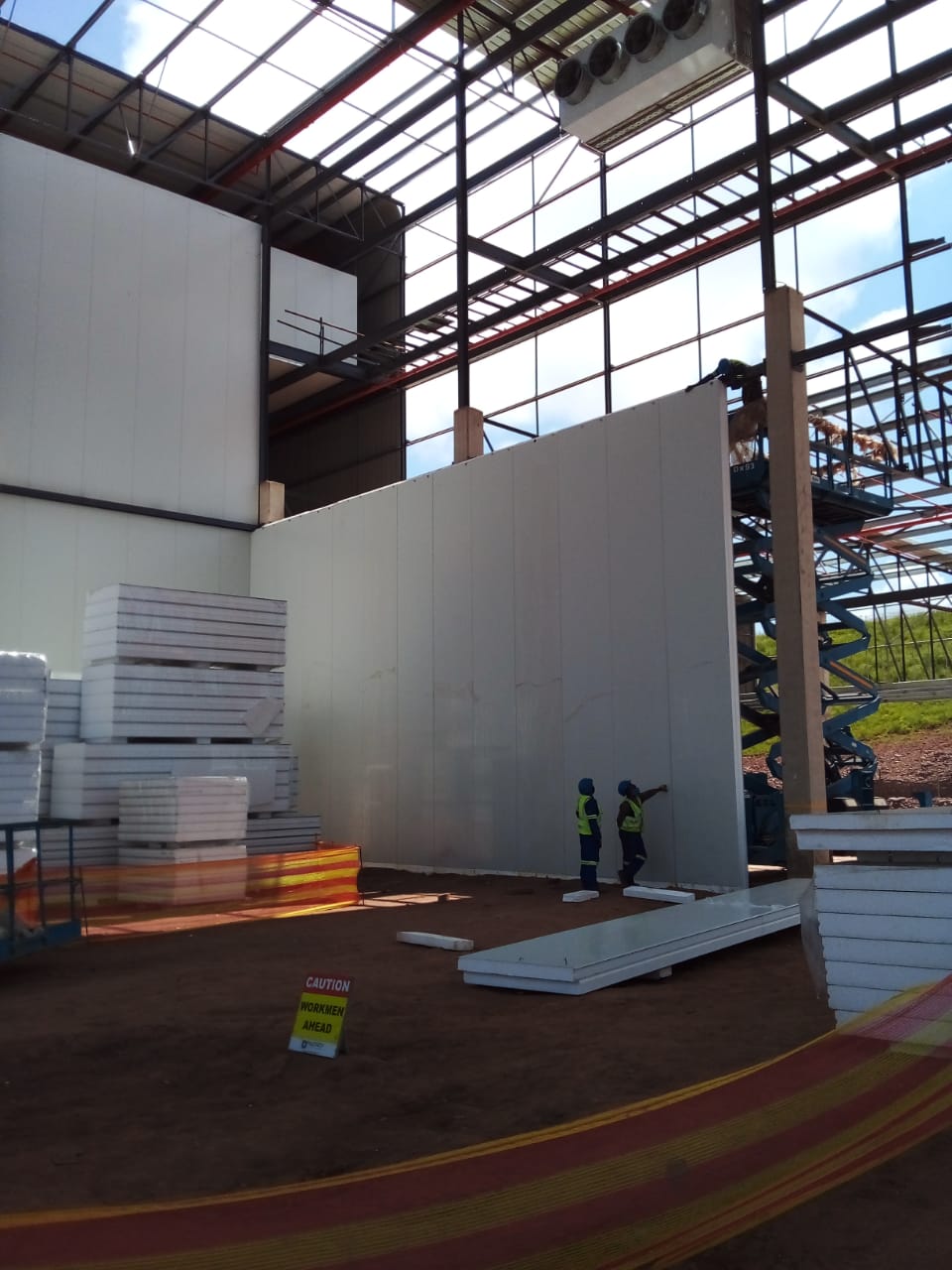

Industrial Cold Rooms
